Engine Tear Down Help
Posted: Wed Mar 16, 2011 9:12 am
by Woodro
I'm trying to tear down the engine in my 502. I was able to get the jug off, but am unable to get the flywheel off. Usually there are 3 small threaded holes where you could attach a puller, but this one doesn't.
Also was wondering about a clutch puller.
Re: Engine Tear Down Help
Posted: Wed Mar 16, 2011 4:36 pm
by Go Go Diablo

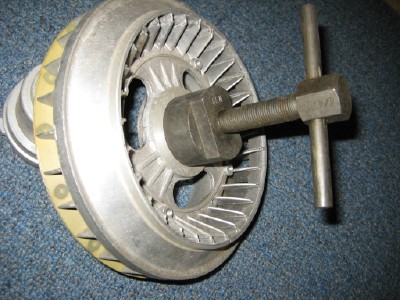

This is a picture of the flywheel puller we use. It's 40mm thread screws on where the recoil hub was unscrewed.

- Flywheel Puller 02.JPG (60.84KiB)Viewed 3256 times

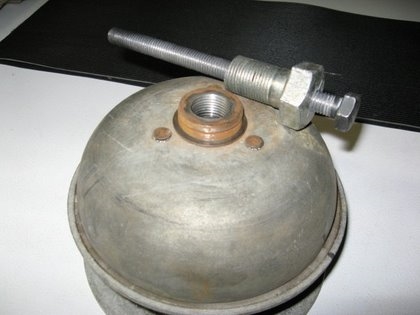

The clutch puller is threaded into the bore of the clutch. If your clutch is not threaded, then you can tap it out. 7/8' fine.

- Primary.JPG (44.16KiB)Viewed 3256 times
Both pullers are available on the parts page of gogodiablo.com.
Bruce
