[snocatpete]

the ski seater is in very good condition but did need some repair. Mostly filling in the holes and redrilling to correct size. Also the original tail light needed repairs

[snocatpete]

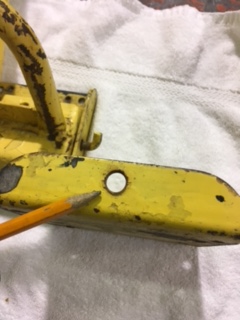

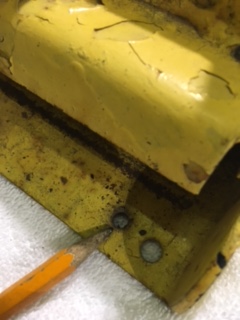

These pictures are showing some extra holes that needed to be filled in on the ski mounts and how the mounting holes are elongated from excessive wear.

[snocatpete]

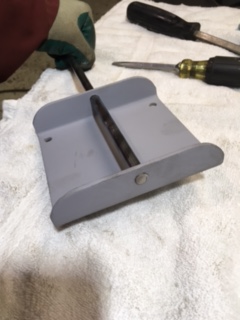

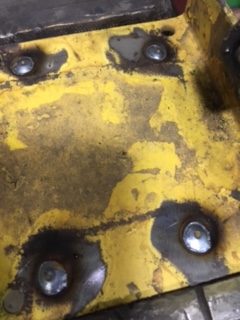

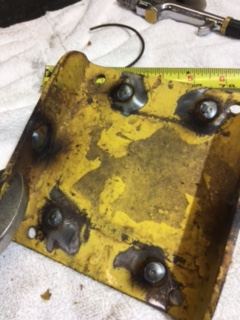

these are the holes all welded in just need to grind them flush and redrill

[snocatpete]

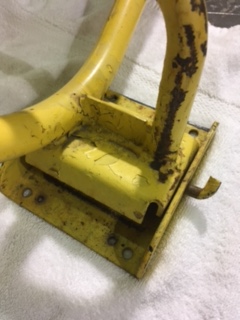

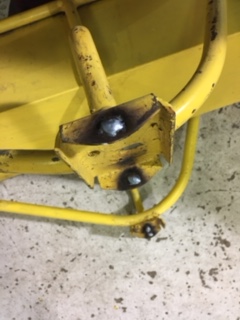

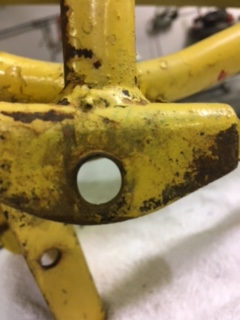

it was the same case for the mounting brackets on the frame. Holes were elongated and needed to be resized.

[snocatpete]

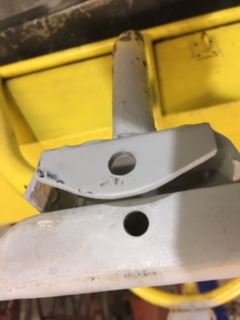

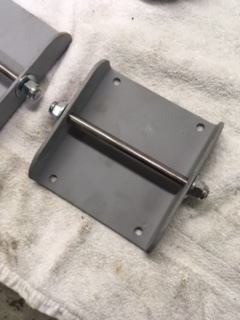

after resizing the holes I fabricated some new mounting pins. On this point does anyone know of a supplier that has the original spring pin/roll pin/split pin for the ski brackets? I believe it is 3/8" x 5" . I have been unsuccessful so far in locating these pins

[randys444]

Looks like a pretty complete machine you have found to work on. The restoration looks like it is coming along nicely. I was also looking for the 3/8 roll pins with no luck. I will check some more suppliers in my area and let you know if I have any luck on this go around. Looking forward to seeing this Hus-ski finished.

[snocatpete]

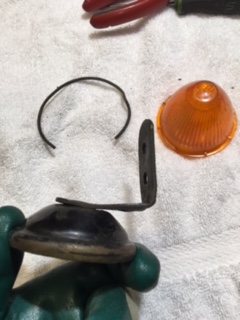

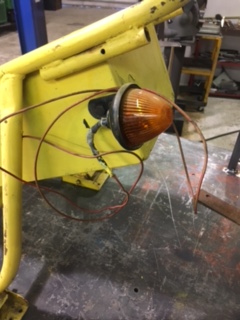

the tail light is the original but needed some repairs

[snocatpete]

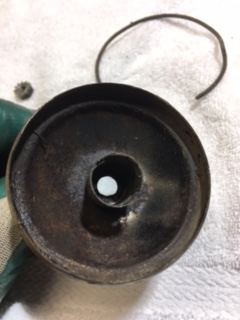

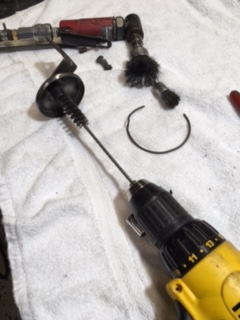

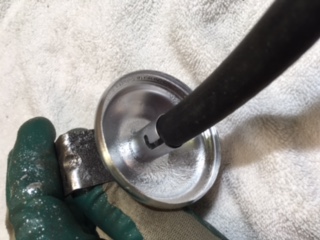

cleaned up the rust removed some dents, straightened the mounting bracket and painted it.

[snocatpete]

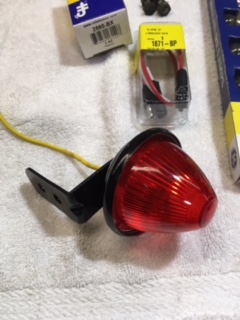

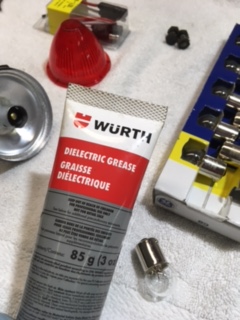

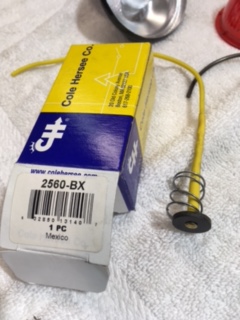

I installed a new pig tail and lens I also reassembled it with dielectric grease to keep any moisture out of the socket

[snocatpete]

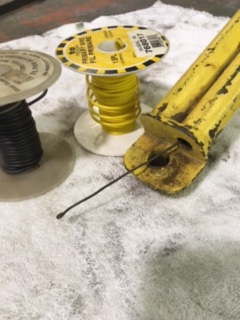

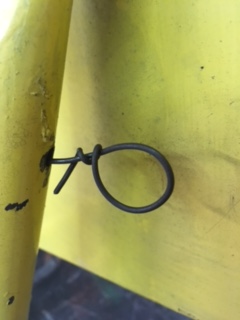

I temporarily ran a piece of mechanic wire through the frame so after sand blasting and painting I will be able to pull the new electrical wires through the frame
